L Series

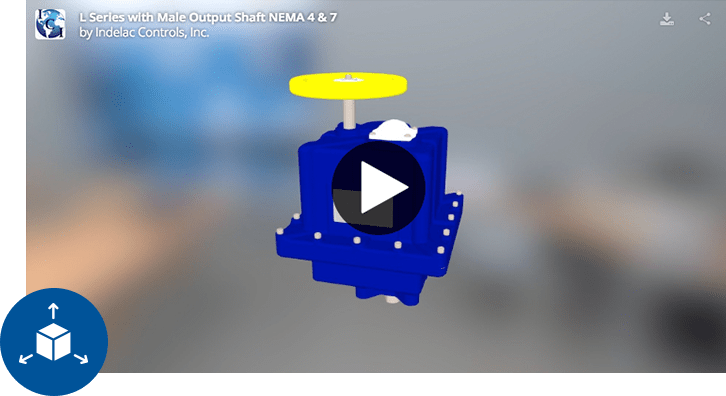

L Series

ICI‘s L series rotary electric actuator was designed for quarter turn valve and damper applications requiring up to 3840 lb × in torque. This heavy-duty reversing actuator has been manufactured since 1991 and is well known for its dependability in harsh applications where reliability is of utmost importance. L series actuators are equipped with hardened steel spur gears guaranteeing high efficiency, quiet operation and long trouble free life and, as in all ICI actuators, can withstand stall conditions without suffering gear failure. The heavy-duty sand-cast aluminum enclosure meets NEMA 4 specifications and has a thermally bonded ultraviolet resistant polyester powder coating that not only enhances its appearance but is also a tough corrosion resistant coating.

Standard equipment includes 115Vac-1ph continuous duty motor with thermal overload protection, heavy duty hardened steel spur gearing, two limit switches wired for light indication, stainless steel fasteners, 300 series stainless steel output drive, declutching manual override with hand wheel, visual position indicator and polyester powder coating.

Specifications

Print Specifications
Output Torque
LA-5…700 Lb-In (226 Nm)
LA-12…2000 Lb-In (226 Nm)
LX-5…1200 Lb-In (226 Nm)
LX-14…3840 Lb-In (434 Nm)
Cycle Time:
LA-5…5 seconds/90°
LA-12…12 seconds/90°
LX-5…5 seconds/90°
LX-14…14 seconds/90°
Duty Cycle: 100%
Motor: 115Vac-50/60Hz-1Ph.
OPTIONAL VOLTAGES:
12Vdc, 24Vdc, 24Vac (24Vdc rectified) 230Vac-50/60 Hz-1 Ph. with thermal overload protection. 230 or 460Vac-50/60 Hz-3 Ph. with thermal overload protection.
Lock Rotor Current
115Vac. = 2.60 Amps. model LA, 2.99 Amps model LX.
230Vac. = 2.4 Amps.
12Vdc. = 14 Amps.
24Vdc. = 20 Amps.
24Vac. = 20 Amps. (24Vdc rectified)
Enclosure: NEMA 4 Standard
Die-cast aluminum with 300 series stainless steel captured screws and thermally bonded polyester powder coating.
OPTIONAL ENCLOSURES:

NEMA 4X & NEMA 7
Output Drive: Male with double D shaft, ISO 5211 F10 optional. 300 series stainless steel.
Mounting: Universal, ISO 5211 F07 mounting pad
Manual Override: Standard
Lubrication: Permanent
Temperature: -40° F to +140° F (heater required at 0 F. and below).
Weight: 30 Lbs.
Switches: 16 A. 125/250VAC
Certification: CSA in process
AVAILABLE OPTIONS: Maximum of 4 auxiliary switches, power off brake, feedback potentiometer, 4-20mA positioner (equipped with 24vdc power supply for transmitter), 4-20mA position transmitter (requires 24Vdc power supply), compartment heater, heater and thermostat, breather, three position control, light indication, two wire control, timer, speed control, remote/off/local control panel, electronic torque sensor and one additional ½” NPT conduit entry.
