Duty Cycle: What Actuator Buyers Need to Know Now

Posted by Olivier Tisserand | Tue, Dec 02, 2014 0 Comments

Duty_Cycle_Bike_BlueA good analogy for initially understanding duty cycle can start with the idea of riding a bicycle. You peddle (period of energy exertion) and then coast (continue moving from your own forward force, without the addition of any power). As you slow down (due to wind resistance, road friction, or road terrain) you peddle to speed up and then coast again.

The 'duty cycle' is the ratio of peddling time to the total time (peddle + coast time). A 100% duty cycle means you are capable of peddling all the time for the entire duration of the bike ride without getting tired. A 50% duty cycle means you are only capable of peddling for half the total bike ride because your endurance does not allow any more than that.

Because of the complexity of the Duty Cycle Calculations and the extensive engineering data per specific motor design and rating required for the calculations, it is necessary for the sales engineer to refer to the Product Department for motor sizing with a duty cycle application.

Duty cycle in the valve automation world is the ratio of actuation on time to off time and is used to determine the proper actuator for a specific application. Understanding duty cycle is necessary in order to determine an acceptable operating time so that the thermal over load in the motor is not exceeded during valve or damper automation.

Actuator inefficiencies cause the motor temperature to rise. At a critical temperature the thermal overload protection is activated and the actuator is shut down. The actuator is inoperative (undesirable in most applications) for a period of time allowing the motor to cool and the thermal overload to reset.

Variables: Duty Cycle = D, On Time= O, Off Time = F

Equation: D = O / (O + F) x 100

For example: ICI’s standard SD model has a 5 second cycle time and is rated @ 25% Duty Cycle. This means that the off time must be at least 15 seconds, hence:

graph_duty_cycle_1O = 5, F = 15

D = 5 / (5 + 15) x 100

D = 5 / 20 x 100

D = 0.25 x 100 = 25%

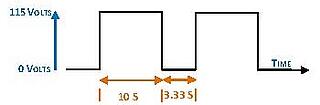

Model SD with an extended duty motor has a 10 second cycle time and is rated at 75% duty cycle. This means that the off time must be at least 3.333 seconds, hence:

graph_duty_cycle_2O = 10, OFF = 3.333

D = 10 / (10 + 3.333) x 100

D = 10 / 13.333 x 100

D = 0.75 x 100 = 75%

This formula can be used to determine the off time of an actuator if the cycle time and duty cycle are known:

 F = O / D x 100 - O

Indelac actuator has a significant advantage
