Model AS10

Model AS10

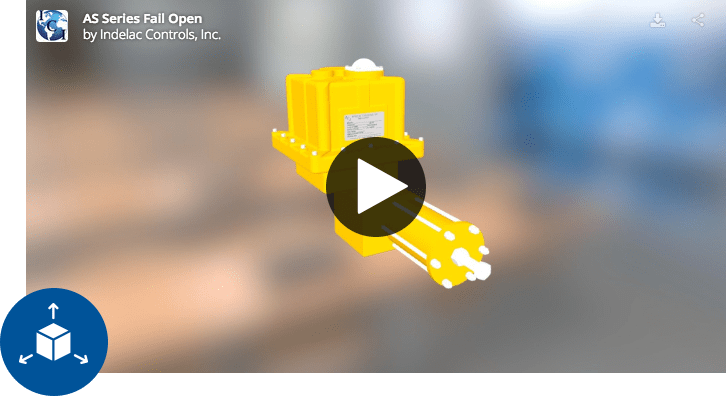

Model AS10 electric spring return actuator is a robust heavy-duty actuator recommended for systems requiring as many as 18 cycles per day (approximately 6500 annually). AS10 has a spring end torque of 1000 lb-in with a closing speed of 3 sec./90 degrees upon loss of power. This actuator is ideally suited for ball valves and dampers with torque ratings of up to 775 lb-in.

Standard equipment includes 115Vac-1ph continuous duty motor with thermal overload protection, set to fail closed (CW rotation) upon loss of power, two limit switches, power on brake, stainless steel fasteners, 300 series stainless steel output drive, polyester powder coating.

Specifications

Print Specifications
Output Torque: 1000 Lb-In (113 Nm)
Motor 115Vac-50/60Hz-1Ph.
Cycle Time: 14 sec/90°
Duty Cycle: Continuous
Mode of Operation: Power open and close, spring to function only upon loss of main power supply.
OPTIONAL VOLTAGES: 230Vac-50/60Hz-1Ph.with thermal overload protection.
Lock Rotor Current: 115Vac. = 2.99 Amps.
230Vac. = 2.74 Amps.
Enclosure: NEMA 4 Standard
Sand-cast aluminum with 300 series stainless steel fasteners and thermally bonded polyester powder coating.
OPTIONAL ENCLOSURES: NEMA 4X & NEMA 7
Output Drive: 1″ square male shaft model AS10
Mounting: Universal, ISO F10
Manual Override: Consult factory
Lubrication: Permanent
Temperature: -40° F to +140° F (heater required at 0° F. and below).
Weight: 70 Lbs.
Switches: 16 A. 125/250VAC
AVAILABLE OPTIONS: Extended duty motor, maximum of 4 auxiliary switches, declutching manual override with hand wheel, NEMA 7 enclosure, feedback potentiometer, 4-20mA position transmitter (requires 24Vdc power supply), compartment heater, heater and thermostat, breather, light indication, two wire control, remote/off/local control panel, and one additional conduit entry.
